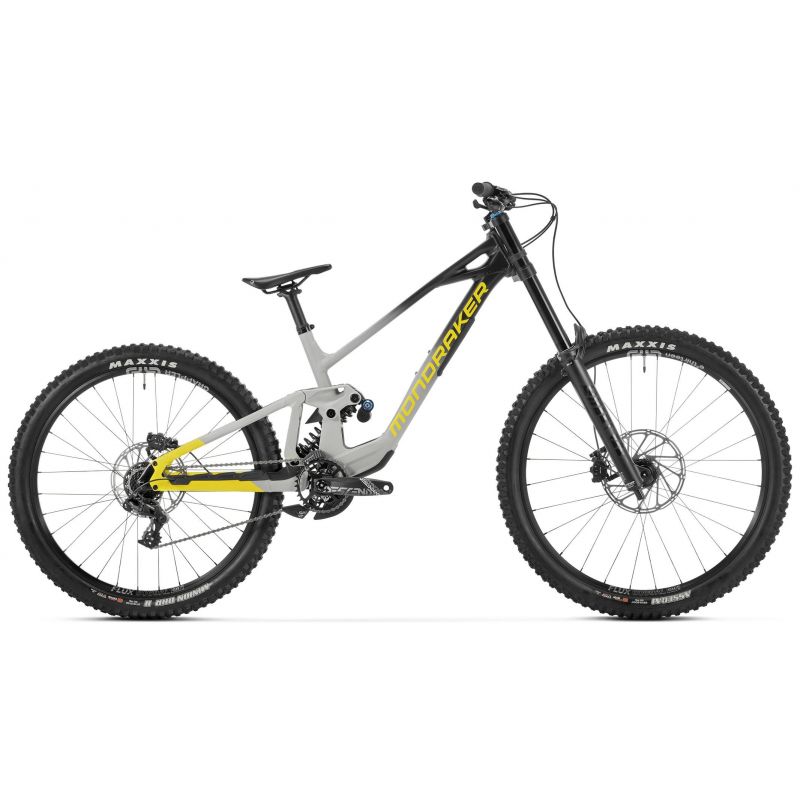

Mondraker Summum R Mullet

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.

Sizes

M / L / XL

Rear shock

Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CL80 compression, RL70 rebound, Rezi B80, Bleed 0.5, VVCM. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs

Fork

Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload

Headset

Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)

Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

Saddle

Ergon SM10 DH Black

Front brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust

Rims

e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen Sapim D-light / Brass

Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen 12x157mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, IS 6 bolts, HG freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead

Crankset

Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5

Rings

34T, steel, X-SYNC

Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock

Front derrailleur

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage

Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Casette

Sram PG 720 11-25T, 7s

Derailleur hanger

Sram UDH

Others

Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

Weight

18,9 kg
