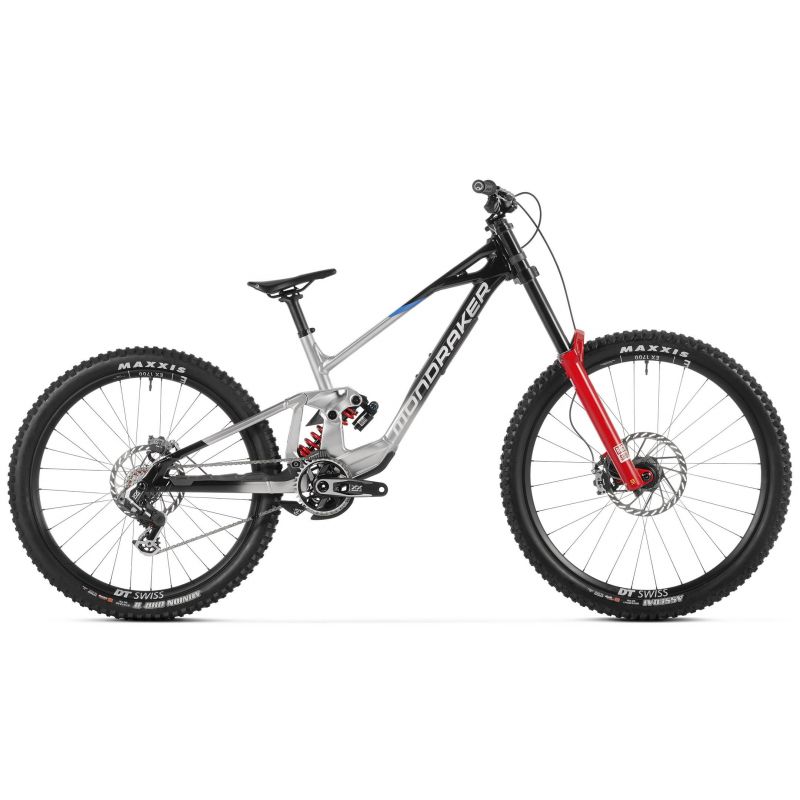

Mondraker Summum RR Mullet

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.

Sizes

M / L / XL

Rear shock

Rock Shox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs

Fork

Rockshox Boxxer Ultimate 29,Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload

Headset

Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)

Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

Saddle

Ergon SM10 DH Black

Front brake

Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust

Rims

DT Swiss EX1700 Classic 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear

Spokes

DT Competition, straightpull

Front hub

DT 350, Boost 20x110mm, IS 6 bolts

Rear hub

DT 350 Classic with 72T Ratchet DEG System, Boost 12x157mm, IS 6 bolts, XD freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27'5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead

Crankset

Sram XX DH T-Type, DUB axle, Direct mount chain ring, 160mm CL 56´5

Rings

36T, Aluminium T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram X0 Eagle T-Type, Powerlock

Derailleur hanger

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Front derrailleur

Sram XX DH AXS, T-type, 7s

Rear derrailleur

Sram Eagle AXS Pod

Shift levers

Sram XS 797 10-24T, 7s

Derailleur hanger

*Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

Weight

18,9 kg
